Farm machinery Sesame Seed Processing Machinery Grain Cleaning Machine Air Fine Seed Cleaner

FOB Reference Price:Get Latest Price
$11,000.00 - $20,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Quick Details
Air Screen Fine Seed Cleaner
Grain & Seed Cleaning
Place of Origin:
Henan, China
Brand Name:
ISO9001:2008, SGS, CE
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Farms
Total Weight:
Overall Dimension (L*W*H):
Total Power:
Screen Type:
Pierced Screen
Screen Dimension(L*W):
Rated Capacity:
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plastic wrapped or loose package for container load of 5X Super Fine Seed Cleaner grain cleaning machine.
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 25 To be negotiated
Product Description


Rated Capacity5 t/h10~12 t/h
Overall Dimension (L×W×H)3200×1920×3600 mm3790×1940×4060 mm
Total Weight3250 kg3600 kg
Total Air Inflow8200 m312520 m3
PowerTop Air Blower(Optional)4-72-4.5A, 7.5KW4-72-5A, 11KW
PowerTotal Power6.7KW6.7KW
 ScreenScreen TypePierced ScreenPierced Screen
 ScreenScreen Dimension(L×W)800×1250mm800×1250mm
 ScreenLayers and Number4 layers,7 pieces5 layers,15 pieces
 ScreenOverall Screen Area7 m215 m2



1. Machine can be converted to different cleaning programs, screens shall be changed accordingly.

2. Above technical data can vary due to continued development, or different machine configurations.


Machine introduction

1. Function: fine cleaning to remove dust, light, big and small impurities; grading seeds according to sizes by air

seperating and mechanical screening. 2. Application: dry grains and seeds. 3. Capacity: 5-12t/h (wheat).

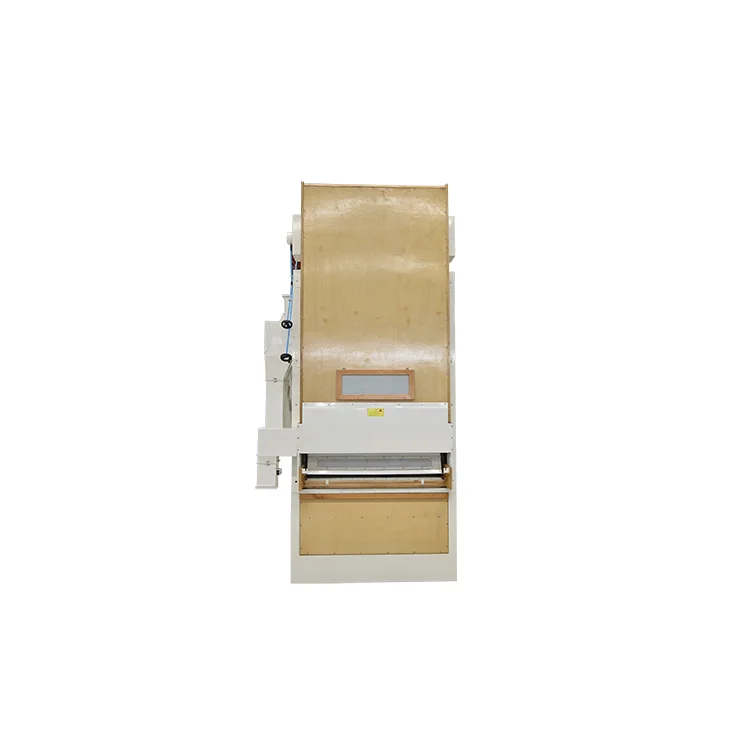

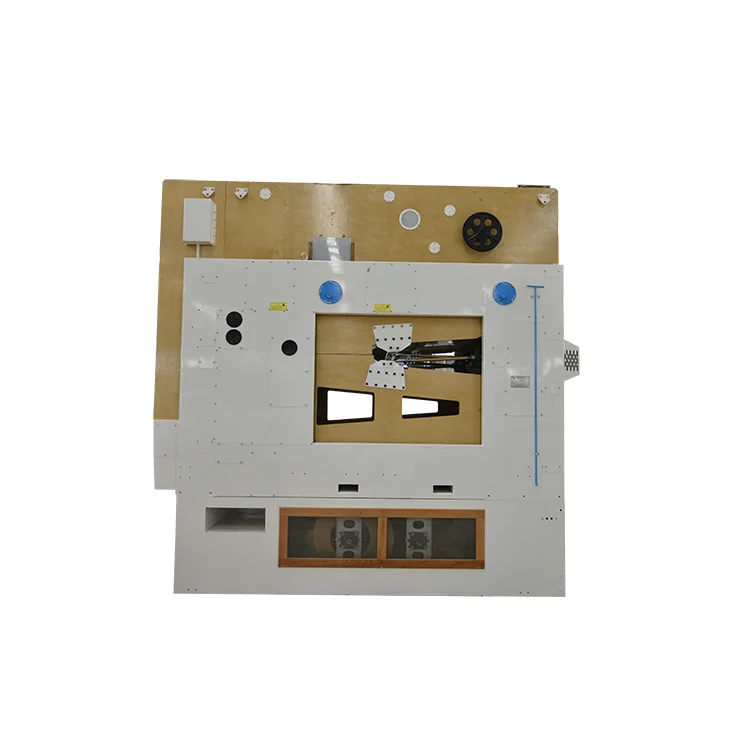

Introduction of 5X Air Screen Cleaner


5X series air screen seed cleaner has been developed specially for flexible, high quality cleaning for dry grains and

seeds.It can be used for pre-cleaning and intensive cleaning, but mainly for seed cleaning, to remove dust, light, big

and small impurities, part of infected broken seeds by air seperating and mechanical screening.

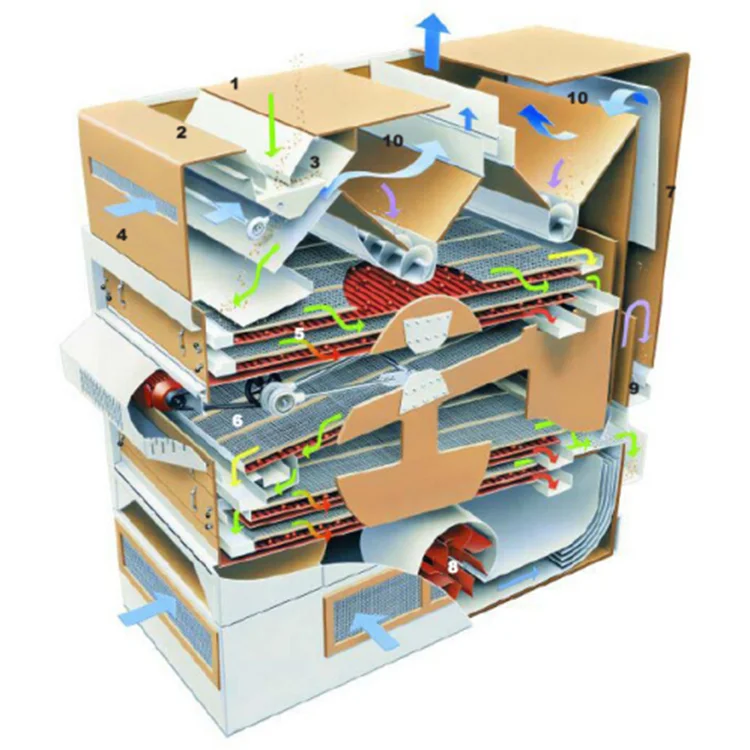

Excellent cleaning and grading effect is accomplished by variable screen configuration, pre- and after suction system,

and air lifting blowers at the bottom. Closed, bolted and painted steel construction ensures the long service life and

safe operation.


Application of 5X Air Screen Cleaner

5X series air screen cleaners are widely used for cleaning and grading of grains and seeds, such as wheat,

maize, paddy rice, barley, beans, peas, oilseeds, grass seeds, flower seeds and forestry seeds.

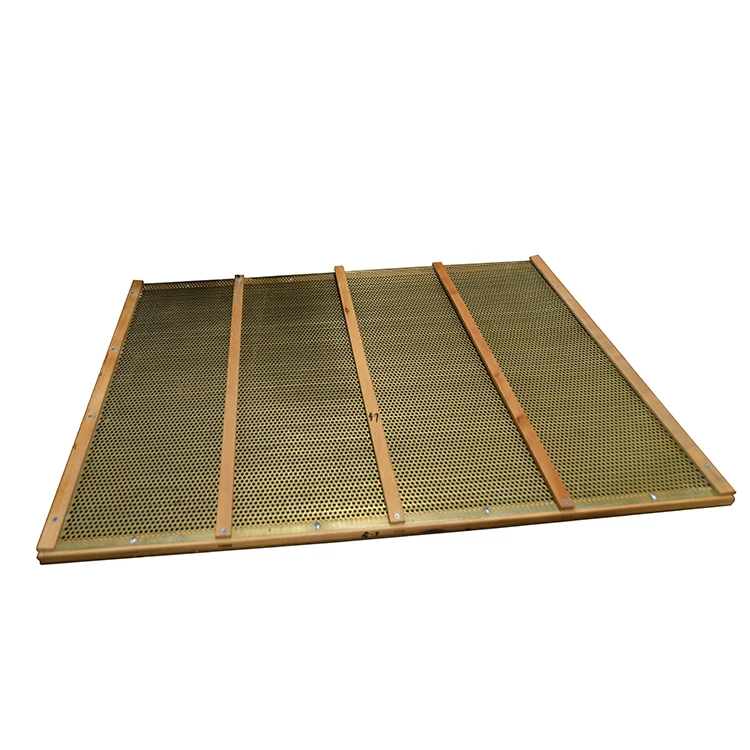

Multi-layer cleaning screens are changeable easily for different processing requirements.



_DSC9774 .png_DSC9775 .png_DSC9777 .png_DSC9778 .png.png_DSC0095 2 .jpg .jpg
